Furuno NAVpilot-700 Autopilot

  • Furuno NAVpilot-700 Autopilot

  • £2,220.00

:  at  £2,220.00  each

Out of stock.

DISCONTINUED



Kit includes -

  • Control head unit FAP7001 (B&W 2 din wide)
  • Processor unit FAP7002
  • Rudder feedback unit FAP6112 with 20m cable

Excludes -

  • Heading sensor (connect into GPS satellite compass or Furuno heading sensor PG700)
  • Pump



FURUNO's NAVpilot is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course keeping capability, dynamically adjusting essential parameters for navigation i.e., vessel speed, trim, draught, tide and wind effects, dead band, weather, etc. These parameters are stored in the system memory and continuously optimized.

  Volvo Penta IPS Compatible Enhanced Sunlight Viewable

Related Contents

Features

  • Perfect for inboard or outboard power boats and sail boats

  • Furuno Fantum Feedback - allows for no physical rudder feedback unit for a streamlined installation and precise course control

    Furuno's all-new "Fantum Feedback" NAVpilot software clears the path to a simplied installation, while also delivering enhanced steering control. With Fantum Feedback, NAVpilot outboard installations no longer require use of a physical rudder feedback unit.

    Fantum Feedback is a menu-selectable feature available in the latest NAVpilot-700 series software. This new software was developed and extensively tested on a wide variety of outboard vessels with hydraulic steering and reversing pump control. Fantum Feedback achieves precise course control, from slow trolling speeds to high-speed cruising, utilizing a newly developed gain process, rather than traditional rudder angle based control.

  • Simplified activation set-up by on-screen wizard

  • Utilizes a self-learning and adaptive software algorithm

    From the rst dock-side setup through the last voyage you made, NAVpilot continues to learn your vessel's steering characteristics. This allows dynamic adjustments to the boat's steering for vessel speed, trim, draft, tide and wind effects, weather, etc. These characteristics are stored in the processor's memory where they are continuously optimized to make the NAVpilot more versatile.

  • Optional revolutionary SAFE HELM and POWER ASSIST brings unrivaled steering control and comfort at the helm*

    <SAFE HELM>
    The SAFE HELM temporarily switches the NAVpilot to manual steering for a specied time interval, taking it out of an automatic steering mode (AUTO, NAV, etc.) After the time interval has elapsed, SAFE HELM is deactivated and the previous automatic steering mode is restored.
    <POWER ASSIST>
    The POWER ASSIST is a unique helm-activated assisted steering feature that can augment and possibly replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy.

    * Required Options - HRP11 or HRP17 Pump and FPS8 Power Steering

  • Selectable "Economy" and "Precision" Navigation Modes combine adaptive technology providing fuel and power savings of up to 2.5% or more.**

    ** Based on Furuno testing and "Scenarios for a Clean Energy Future 2000” - U.S. Department of Energy (www.ornl.gov/sci/eere/cef)

  • "Precision" XTE accuracy: within 0.003 nm

  • Bright & Clear Display

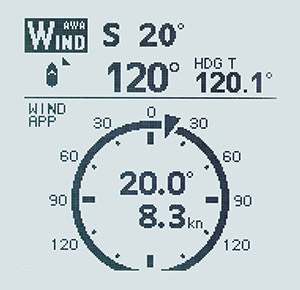

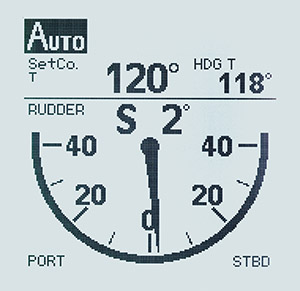

    Various display modes are available, allowing you to customize the data to suit your own preferences with either digital or analog graphics.

  • Simple one-touch mode selection enables flexible steering and course control

    Furuno's new NAVpilot series is designed to match the NavNet TZtouch, NavNet 3D, FI-50 Instrument series and other navigation equipment. The “Plug and Play” CAN bus interface allows for easy installation and exceptional interface ability. The diagrams below show typical installations for power and sail boats.

  • Defferent mode variations

  • FishHunter

    The NAVpilot will activate the FishHunter to perform square, zigzag, circle, orbit, spiral or gure eight maneuvers around the specied target at a user selected distance. This feature can also be used for Man Overboard (MOB).

Specifications

CONTROL UNIT

Display 4.6" Monochrome LCD
Effective Display Area 85.2 (W) x 85.2 (H) mm
Pixel Number 160 x 160
Backlight 8 steps
Contrast 16 steps

PROCESSOR UNIT

Rudder Angle Adjustment STBY, Auto, Dodge, Turn, Remote, Advanced auto*, Navigation*, Wind*, Fish Hunter™*

* external data required
Sea Condition Adjustment AUTO/MANUAL-CALM/MODERATE/ROUGH
Rudder Angle Settings 10 - 45 deg
Alarm Heading deviation, Cross-track error*, Ship's speed*, Depth*, Water temperature*, Wind*, Watch, Log trip*

* external data required

INTERFACE

Ports CAN bus (NMEA2000): 1, NMEA0183: 2
Input (NMEA0183) AAM, APB, BOD, BWC, BWR, DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWV, RMB, RMC, ROT, RSA, THS, TLL, VHW, VTG, VWR, VWT, XTE, ZDA
Input (CAN bus) 059392/904, 060928, 061184, 126208/720/992/996, 127250/251/258/488/489, 128259/267, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/577/818/821/827/880
Output (NMEA0183) DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, VWT, ZDA
Output (CAN bus) 059392/904, 060928, 061184, 126208/464/720/992/996, 127245/250/251/258, 128259/267, 129025/026/029/033/283/284/285, 130306/310/311/312/822/823/827

WATERPROOFING

Processor Unit IPX0
Control Unit IP56
Other unit IPX5

OTHERS

Power Supply 12-24 VDC: 4.0 - 2.0 A (excluding pump)
Size 115 (H) x 220 (W) x 81 (D)
Weight 0.62 kg
